Parts And Equipment

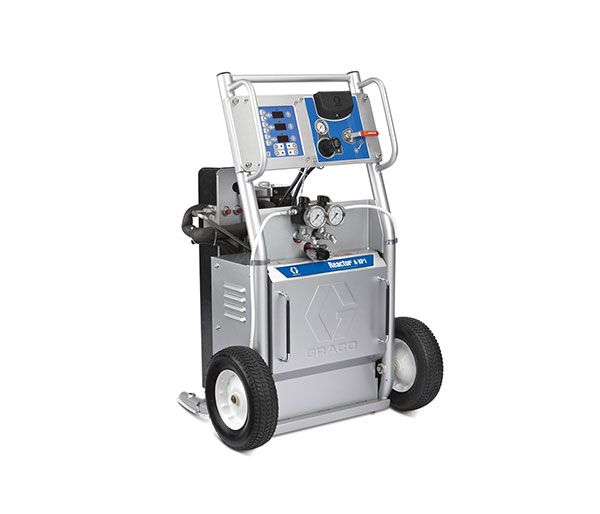

A-XP1™

Polyurea || Reactor 2

Entry-level air operated plural-component systems for polyurea coatings applications. Ability to maintain consistent temperature controls even when spraying at maximum flow rates.

1.5 gal (5.7 L) / min

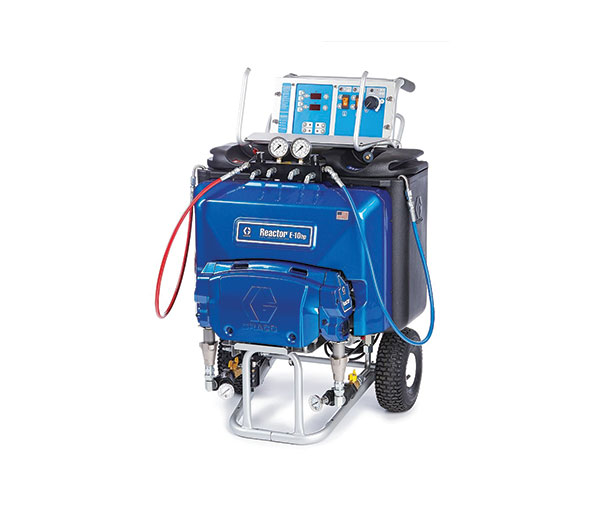

E-10HP™

Polyurea || Reactor 2

Entry-level electric plural-component systems, including touch-up and portable options, for polyurea coatings applications. Uses standard outlets so no generator needed.

1 gal (3.8 L) / min

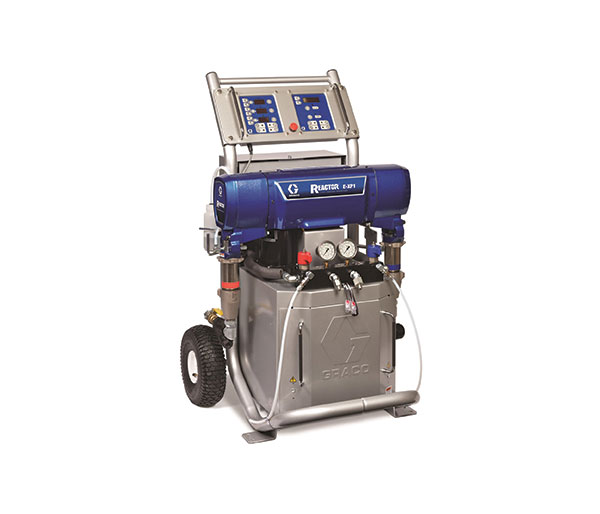

E-XP1™

Polyurea || Reactor 2

Entry-level electric plural-component systems for polyurea coatings applications. Equipped with material data and system diagnostics to provide total control for spraying coatings.

1 gal (3.8 L) / min
10.2 kW heat

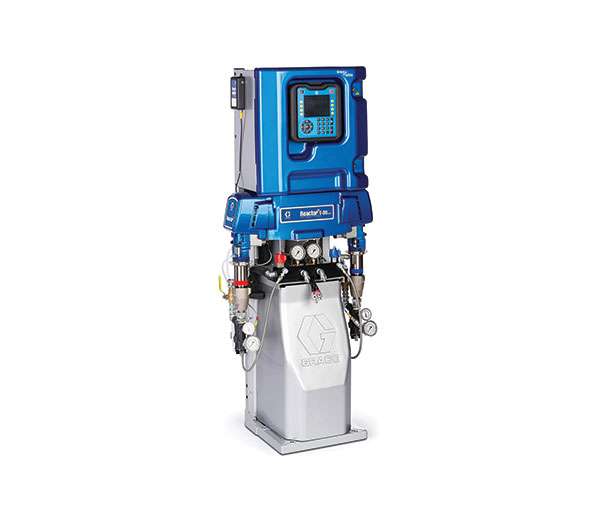

E-XP2™

Polyurea || Reactor 2

Mid-production electric plural-component systems for polyurea coatings applications. Proven reliability with consistent spray pattern, increased productivity, and space savings.

2 gal (7.6 L) / min
15.3 kW heat

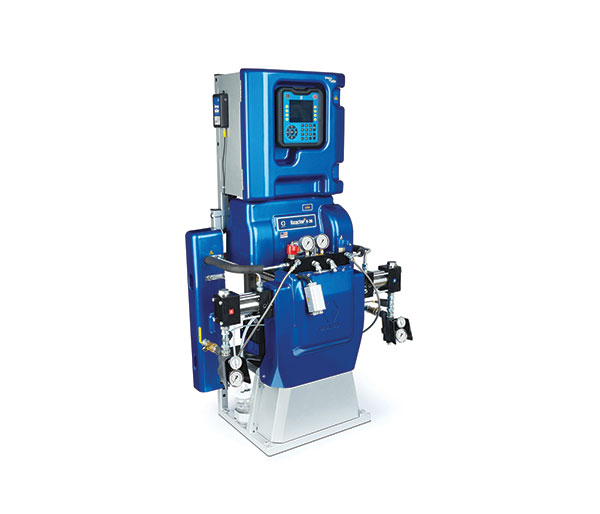

H-XP2™

Polyurea || Reactor 2

Mid-production hydraulic plural-component systems for polyurea coatings applications with dependability, reduced downtime, and high performance.

1.5 gal (5.7 L) / min
15.3 kW heat

H-XP3™

Polyurea || Reactor 2

High-production hydraulic plural-component systems for polyurea coatings applications. Increased yield and performance for high-output spraying.

2.8 gal (10.6 L) / min
20.4 kW heat

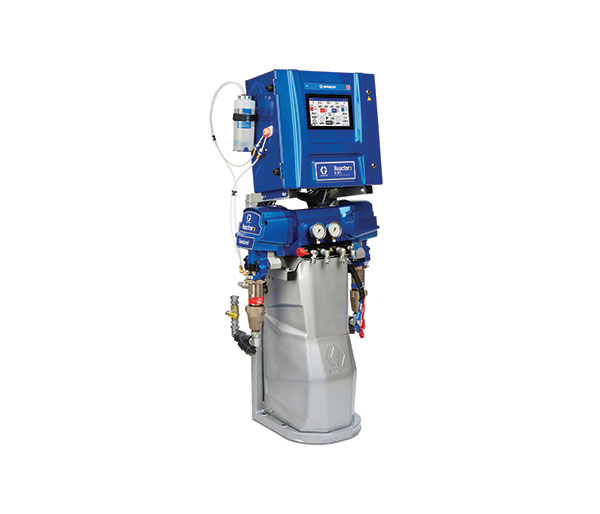

Standard E-XP1™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Standard option comes with touch screen ADM, brushless motor, active ISO lube pump, data download (with USB), small recirculation valves, and simple Y-strainers.

1.8 HP
1.5 GPM
3,000 psi
10 kW heat sngl. block

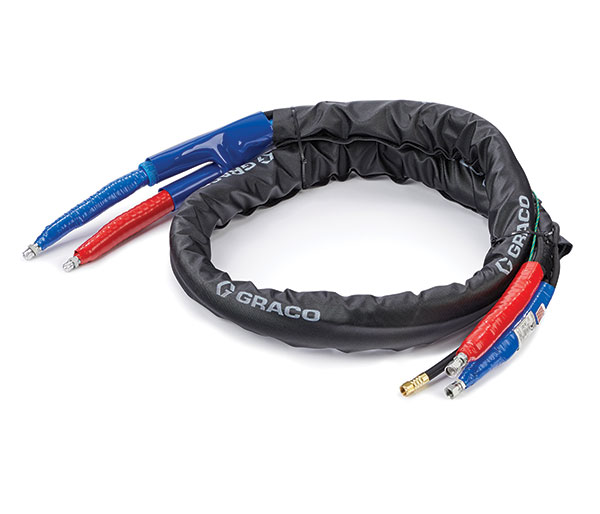

Heated Hoses (Whip)

Polyurea || Heated Hoses (Whip)

Whip hoses are wrapped with a copper heating element at a precise pitch to achieve accurate, uniform heating. Our selection of whip hoses includes sizes 1/4 in x 10 ft (6.3 mm x 3 m), 1/4 in x 20 ft (6.3 mm x 6 m) and 3/8 in x 10 ft (9.5 mm x 3 m) with optional Xtreme-Wrap™ scuff guard technology.

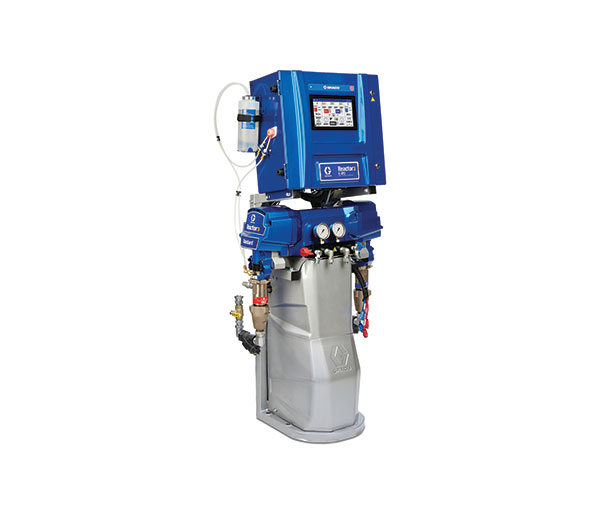

Standard E-XP2™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Standard option comes with touch screen ADM, brushless motor, active ISO lube pump, data download (with USB), small recirculation valves, and simple Y-strainers.

2.5 HP
2 GPM
3,500 psi
15 kW heat dual block

Pro E-XP1™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Pro option comes with all the features of Standard plus larger heater options, large easy-access inlet filters, Reactor® connect cell module, large recirculation valves and drum-level dipsticks.

1.8 HP
1.5 GPM
3,000 psi
10 kW heat sngl. block

Pro E-XP2™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Pro option comes with all the features of Standard plus larger heater options, large easy-access inlet filters, Reactor® connect cell module, large recirculation valves and drum-level dipsticks.

2.5 HP
2 GPM
3,500 psi
15 kW heat dual block

Elite E-XP1™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Elite option comes with all the features of Pro plus Katalyst™ full system control, ratio assurance, inlet temperature and pressure sensors, generator dashboard and optimization for CORE™ E1 transfer pumps.

1.8 HP
1.5 GPM
3,000 psi
10 kW heat sngl. block

Elite E-XP2™

Polyurea || Reactor 3

Electric proportioner designed to communicate with the entire system to optimize spray parameters and maximize productivity. Elite option comes with all the features of Pro plus Katalyst™ full system control, ratio assurance, inlet temperature and pressure sensors, generator dashboard and optimization for CORE™ E1 transfer pumps.

2.5 HP
2 GPM
3,500 psi
15 kW heat dual block

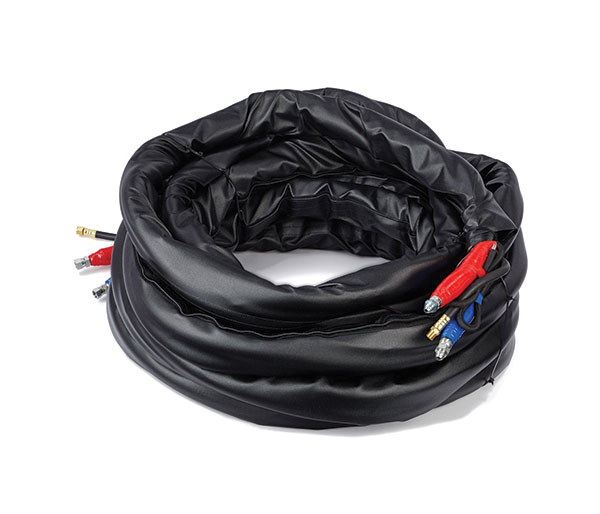

High Pressure 3/8" Heated Hoses

Polyurea || Heated Hoses

Heated hoses are wrapped with a copper heating element at a precise pitch to achieve accurate, uniform heating. Our selection of 3500 psi (240 bar, 24.0 MPa) 3/8 in x 50 ft (9.5 mm x 15 m) hoses includes options such as thermocouple technology, ground wire, Xtreme-Wrap™ scuff guard technology, and Resistance Temperature Detector (RTD) technology.

High Pressure 1/2" Heated Hoses

Polyurea || Heated Hoses

Heated hoses are wrapped with a copper heating element at a precise pitch to achieve accurate, uniform heating. Our selection of 3500 psi (240 bar, 24.0 MPa) 1/2 in x 50 ft (12.7 mm x 15m) hoses includes options such as thermocouple technology, ground wire, scuff guard protection, and Resistance Temperature Detector (RTD) technology.

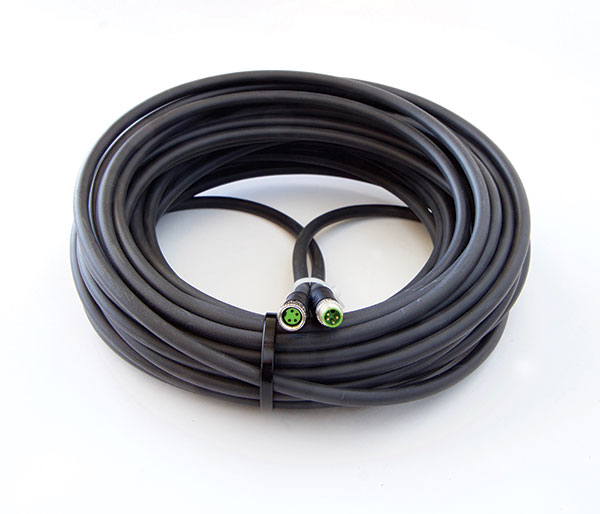

Hose Accessories

Polyurea || Heated Hoses

Our selection of hose accessories includes Fluid Temperature Sensor (FTS) Kit with Resistance Temperature Detector (RTD), 50 ft (15 m) RTD cable, FTS Kit with thermocouple, and 50 ft (15 m) thermocouple cable.

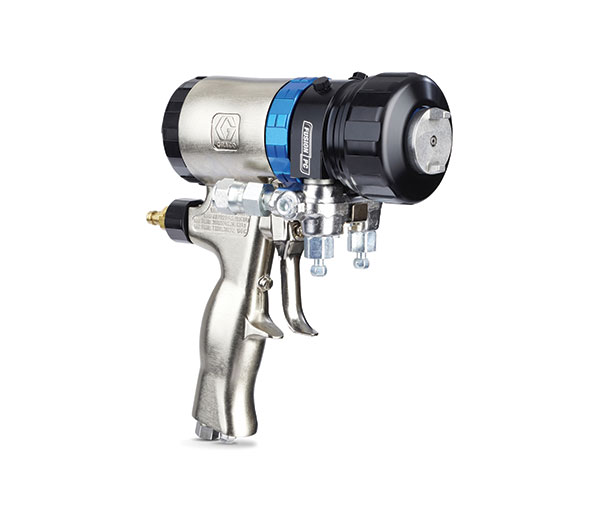

Fusion® PC

Polyurea || Polyurea Spray Guns

Our ProConnect® (PC) air purge gun features an easy-to-use disposable replacement cartridge that combines 13 parts in one — so contractors can complete a perfect rebuild in seconds and minimize spare parts inventory.

3 lb./min (1.4 kg/min) to 40 lb./min (18 kg/min)

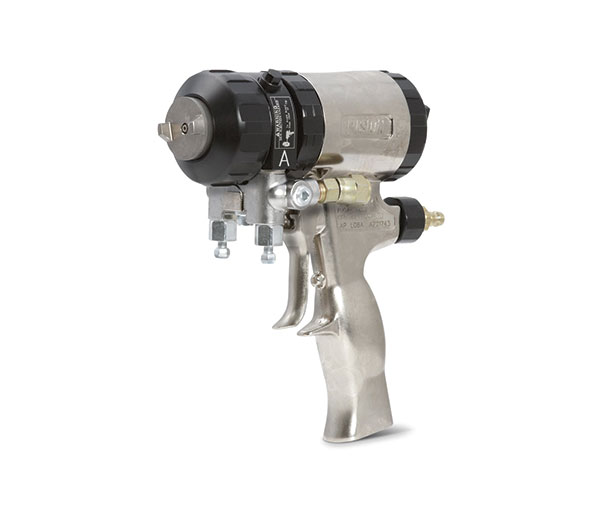

Fusion® AP®

Polyurea || Polyurea Spray Guns

The most popular plural-component gun, Fusion® AP® air purge gun is easy to use and maintain with precision machined, hardened stainless steel construction, quick-release fluid housing, and simple air-blast tip technology for less maintenance.

3 lb./min (1.4 kg/min) to 50 lb./min (22.7 kg/min)

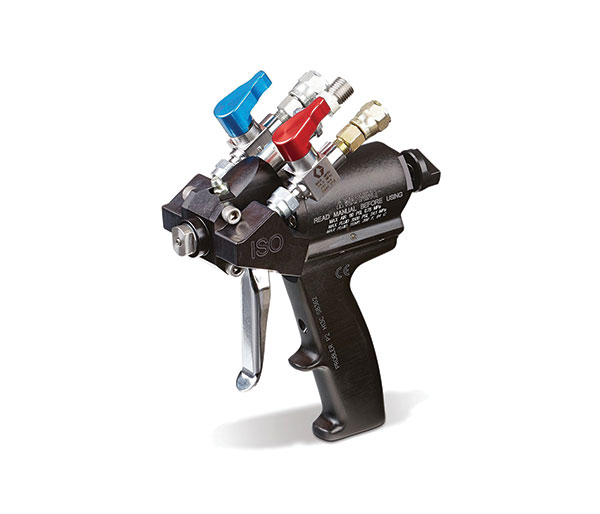

P2

Polyurea || Polyurea Spray Guns

The PROBLER® (P2) air purge gun is compact with a light and comfortable double-piston design that lets you spray and maneuver easily, and it has easy maintenance with check valves that prevent the liquid portion from infiltrating the dry side of the gun.

3 lb./min (1.4 kg/min) to 40 lb./min (18 kg/min)

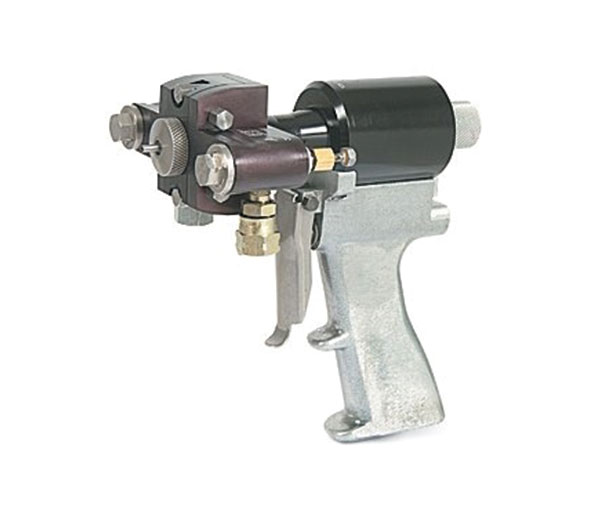

GAP PRO®

Polyurea || Polyurea Spray Guns

This air purge gun was made for high output polyurea applications and designed for construction, bedlining, roofing and other plural-component spraying with hardened steel side seals and mix chamber for long-lasting performance.

3 lb./min (1.4 kg/min) to 40 lb./min (18 kg/min)

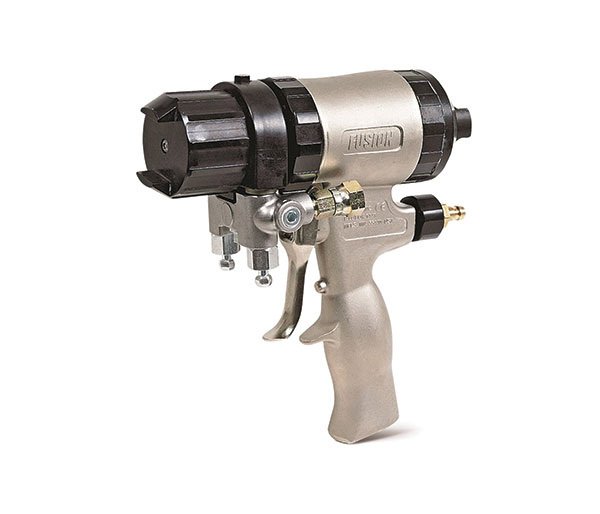

Fusion® MP

Polyurea || Polyurea Spray Guns

This mechanical purge gun has an advanced mix module and tip design to provide excellent mix and material properties while significantly reducing repair and maintenance costs. Changing the mix module and tip allows you to handle low output (thin mil) and high output applications.

2 lb./min (0.9 kg/min) to 50 lb./min (22.7 kg/min)

T1

Polyurea || Transfer Pumps

T1 is our lightest weight transfer pump with a 2:1 fluid to air ratio. When selecting your transfer pump, be sure to consider material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure.

2.5 GPM (9.5 LPM)

T2

Polyurea || Transfer Pumps

T2 is our tallest transfer pump with a 2.25:1 fluid to air ratio. When selecting your transfer pump, be sure to consider material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure.

5.0 GPM (19 LPM)

T3 SST and T3 CS

Polyurea || Transfer Pumps

T3 stainless steel and carbon steel transfer pumps combine the Merkur® air-motor and popular T2 stainless steel lower. They have a 3:1 fluid to air ratio, so use less air pressure to provide the same fluid pressure required. When selecting your transfer pump, be sure to consider material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure.

4.5 GPM (17 LPM)

T4

Polyurea || Transfer Pumps

T4 carbon steel transfer pump is based on air pilot valve technology. It utilizes the Merkur® air-motor so the air-motor switching is purely pneumatic, has a 3:1 fluid to air ratio, and is about 3x quieter than the T2. When selecting your transfer pump, be sure to consider material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure.

4.5 GPM (17 LPM)

CORE™ E1

Polyurea || Transfer Pumps

Our CORE™ E1 electric transfer pumps communicate with the Reactor® 3 to give you a fully connected system that optimizes material supply and minimizes downtime. They are also quieter and less expensive to operate than traditional pneumatic pumps.

Air Driven Expanding Blade Agitator

Polyurea || Mixers

Our expanding blade agitators are specifically designed to properly mix polyurea materials for optimal material properties and yields and to maintain suspension. They were made to fit through a standard drum bung with an extended center shaft to ensure the blades reach the bottom of the drum.

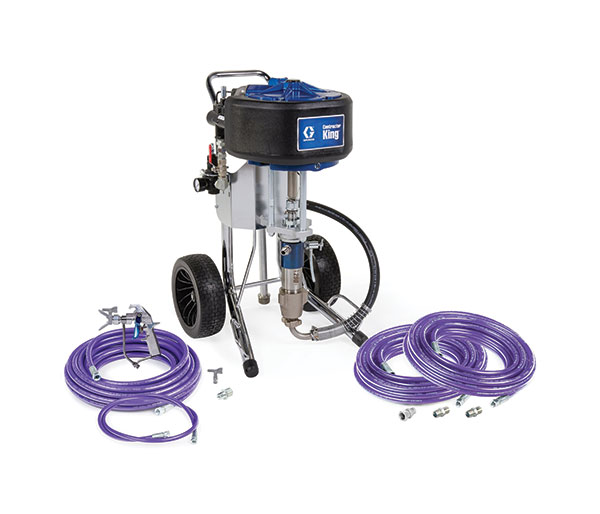

King Air Airless Sprayer

Other Protective Coatings || Reactor 2

The King is an air-operated pump for high-volume and high-pressure waterproofing, fireproofing and protective coatings applications.

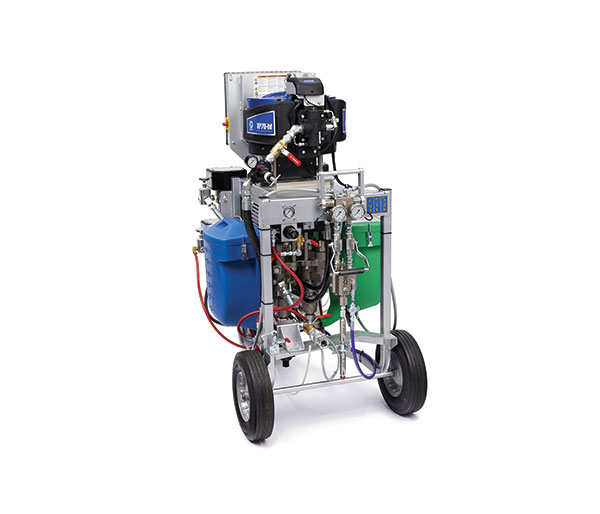

XP Series Sprayers

Other Protective Coatings || Reactor 2

Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.

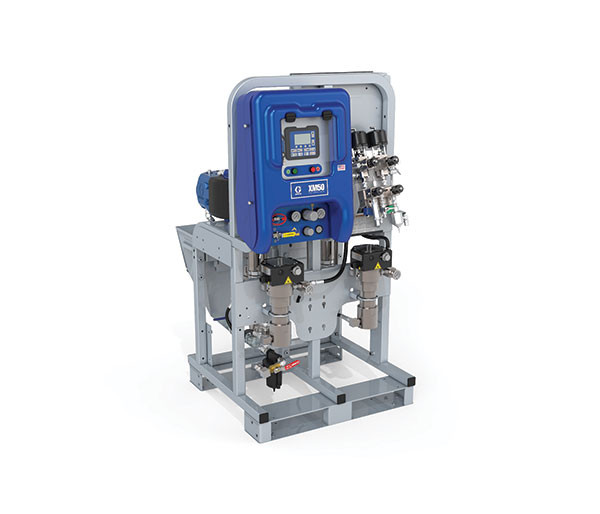

XM Series Sprayer

Other Protective Coatings || Reactor 2

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

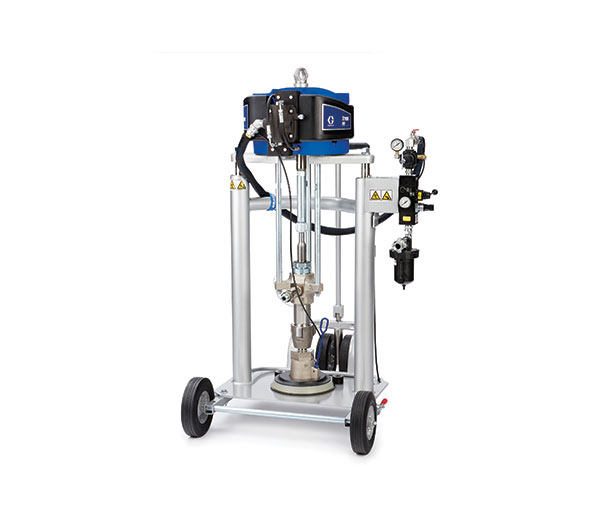

Xtreme PFP

PFP || Reactor 2

Affordable option for PFP touch-up projects. Get in and get smaller jobs done fast. Ideal for spraying hot-potted fireproofing materials, the Xtreme PFP Sprayer is easy to use and easy to clean.

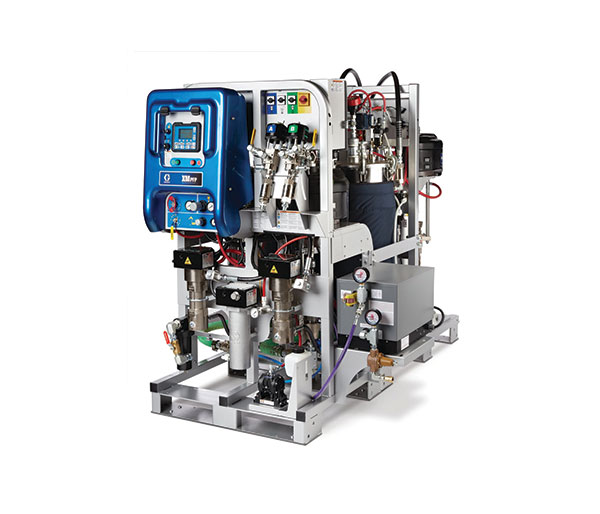

XM PFP

PFP || Reactor 2

Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse. The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm that epoxy intumescent coatings are sprayed on-ratio, at requirements set by the manufacturer. The XM PFP is easy to use, maintains consistent temperature control and offers precise ratio control.
